- 3M Speedglas Heavy-Duty Welding Helmet G5-01TW with Adflo PAPR
The all-new 3M™ Speedglas™ Welding Helmet G5-01 TW with Heavy-Duty Adflo PAPR is a feature-packed, upgraded version of the hugely popular 3M Speedglas 9100 FX Air, with a stack of new technology. Benefit from a larger viewing area with superior optics and a 15% larger clear grinding visor, airflow climate control, 50% longer battery run time and improved comfort. With Bluetooth lens technology, extra protection options and an optional task light – the G5-01TW must be tried to be believed!

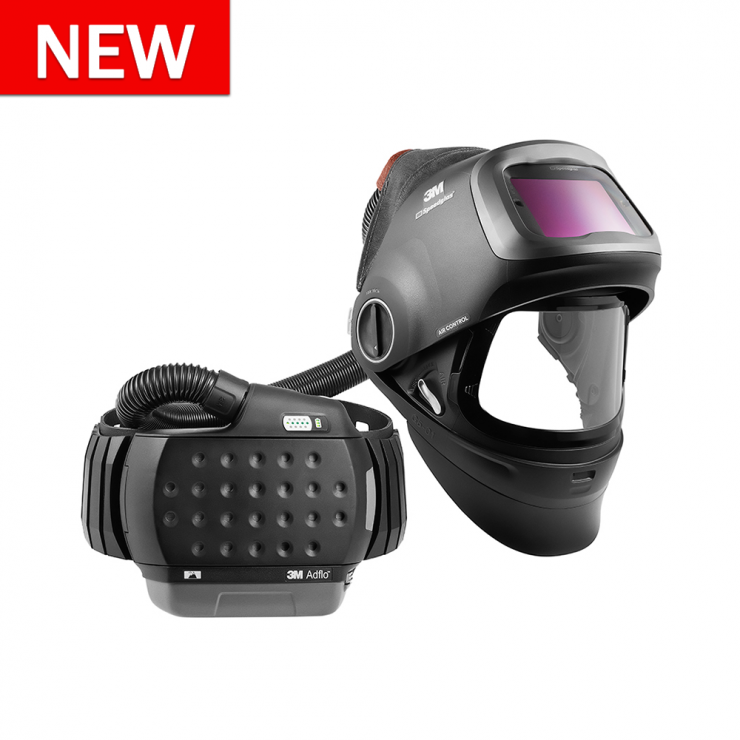

3M™ Speedglas™ Welding Helmet G5-01TW with Heavy-Duty Adflo PAPR
Part Number: 617820
A Legendary Helmet – Upgraded!
The G5-01TW represents a new feature-packed version of the hugely popular Speedglas 9100 FX Air! Offering a stack of new, upgraded features over the 9100 FX Air, the G5-01TW has been launched at the exact same price point!
Protection from Welding Fume
A new comfort face seal carefully follows the contours of both the helmet and the face, providing an effective positive pressure respiratory seal. The welding helmet’s exclusive airflow pattern ensures the even distribution of filtered air throughout the entire breathing zone of the welder.
Larger Curved Grinding Visor and Removable Welding Shield
Flip up to even wider views when grinding! A smooth flip-up function reveals a massive 170x104mm clear, curved grinding visor – 16% larger than the Speedglas 9100 FX Air! Plus, for extended periods of non-welding, users can easily detach the welding visor – helping reduce the helmet weight by over 35%.
Larger Views with Superior Optical Quality
A massive 73 x 109mm viewing area lets you view your welds with even greater clarity! With Speedglas True-View technology literally changing the way welders see, what you see through the lens appears more detailed, lighter and colourful.
Smoother Dark to Light Transition
Human eyes aren’t designed for handling rapid transitions from dark to light to dark again. The G5-01 TW welding lens uses an intermediate shade 5 light state to help minimise eye strain during extended tack welding applications. If an arc is not struck within 2 seconds the welding lens will switch back to its TrueView light state (shade 3).

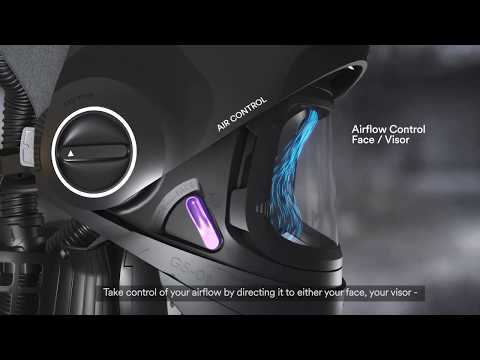

Climate Control Under The Hood
Taking control over the airflow within your helmet has never been easier! An innovative helmet duct system lets you control the direction and amount of airflow coming into the helmet, for ultimate comfort. All airflow adjustments can be made while wearing the helmet, allowing you to maintain your eye, face and respiratory protection.
Configurable Protection
Maximise your protection with a new range of extra coverage options to suit your welding environment. Choose from extended neck and head covers – available in leather, fabric and high-visibility options.
A Slimmer Design with Greater Coverage
The slimmer, streamlined profile of the G5-01 provides even greater protection for welders’ ears, head and neck.
Bluetooth Connectivity and Memory Modes
With Bluetooth technology, the G5-01TW welding lens allows you to seamlessly change lens settings from the palm of your hand – all while keeping your respiratory protection in place. You can also program up to four memory modes for easy switching.
Let There Be Light
Light up your workspace with an all-new optional task light. With configurable light intensity, the G5-01 task light provides hours of powerful lighting when welding in poorly lit spaces.
Welding PPE Made in Sweden
All Speedglas helmets are made in Sweden with every welding lens still checked by hand.
Industry-Leading Arc Detection and Switching with Auto-On
Powerful photo-sensors with the ability to detect an arc down to 1 amp. Auto-On means your welding helmet is instantly ready to weld; programmed to your last used welding setting.
Highest Optical Classification
Speedglas welding helmet G5-01 gives the welder the highest possible optical rating (1/1/1) and is compliant with AS/NZS1338.1.
All Welding Applications with Multiple Modes
Shades 3, 5, 8, 9-13 along with multiple mode settings means you can weld, grind, cut and tack, indoors and outdoors – even with a completely hidden arc.
Australian & New Zealand Standards Compliant
Complies with Australian & New Zealand Standard AS/NZS1337.1 (high impact face protection), AS/NZS1338.1 (eye protection) and AS/NZS1716 (respiratory protection).
Comfort & Ergonomics
New and improved head harness is designed for ultimate comfort. With perfect weight distribution and dual comfort paddles, the harness avoids sensitive areas and allows for complete customisation to your head. An extra-large back pad offers enhanced comfort.
Magnification Lens Holder
Built-in magnification lens holder makes for easy lens attachment, while optimising its position for precision viewing.
Speedglas Welding PPE is a long term investment
The Speedglas G5-01 helmet has a custom designed multi-function programmed logic chip that minimises the number of discrete surface-mounted components; leading to improved reliability and longevity.
Industry Leading Warranty Protection
The Speedglas G5-01 welding lens features a revolving three year warranty. If you experience any problems with the welding mask in the first three years, your 3 year warranty protection starts again. Speedglas helmets are built to last.
The Heavy Duty Adflo Powered Air Purifying Respirator (PAPR)
Heavy Duty Battery Life with One Hour Rapid Charge
The Speedglas G5-01 TW comes standard with the new heavy duty Adflo for 12 hours powerful respiratory protection – giving it 50% greater run time than the Speedglas 9100 FX Air. With rapid charge, the battery charges from 0-80% of its full capacity in approximately one hour.
.
Award-Winning Respiratory Protection
As one of the most popular PAPR’s in the world, the Adflo respirator has become synonymous with welder’s respiratory protection. The powerful Adflo motor provides increased comfort and safety for all day welding.
You Only Have One Pair of Lungs
The Adflo powered air respirator conforms to Australian & New Zealand Standard AS/NZS1716 (respiratory protection), and offers a required minimum protection factor of 50 for thermally and mechanically generated particles. This means the air you breathe will be at least 50 times cleaner than if you were unprotected.
Exclusive Adflo airflow pattern
Filtered air is evenly distributed throughout the entire breathing zone of the welder, thanks to an exclusive airflow pattern. The intelligent turbo motor maintains the airflow rate at a constant level. For maximum comfort, a diffuser spreads out the airflow pattern.
Mobile, Super Light Welding Respirator
Worn around the welder’s waist, the Adflo unit allows for full mobility. The slim respirator profile makes it perfect for welding in tight spaces. The system has recently been reduced in weight by a further 15%.
Quick Release, Self-Adjusting Breathing Hose
The advanced Quick Release Swivel (QRS) is designed for one handed connection and release. The self-adjusting length means the welding hose is always kept close to the welder to prevent snagging on surrounding objects.
Protection from Welding Particles, Fumes and Gases
With the right type of respiratory filter, the Adflo respirator can effectively protect against both particles and gases – an important safety feature. Indicators assist the welder in knowing when to change the Adflo filters and to charge the Adflo battery.
Standard & Airflow Plus
Regardless of the battery’s charge or the particle loading of the filter, the Adflo system always maintains a constant flow rate of 170 litres per minute. For welding in hot, humid environments, welders can increase the airflow to 200 litres per minute to reduce fatigue and increase their overall welding comfort.
Industry Leading Warranty Protection
The Adflo PAPR is covered by a two year revolving warranty. If you experience any problems with the system in the first two years, your 2 year warranty protection starts again. Speedglas helmets and Adflo powered air welding respirator systems are built to last.
Relevant Welding Helmet Standards
Eye Protection – AS/NZS1338.1, Face Protection – AS/NZS1337.1 (High Impact), Respiratory Protection – AS/NZS1716
Speedglas TrueView Welding Lens
Yes
Variable Colour Technology
No
Stick Welding
Yes
MIG Welding
Yes
TIG Welding
Yes (industry leading detection down to 1 Amp)
Grinding Feature
Large Clear Grinding Visor 170 x 104mm (Flip-Up)
Memory Mode (Set-and-Forget)
Yes – 4
SideWindow Peripheral Vision
No
Hidden Arc Mode
Yes
Welding Lens Viewing area
73 x 109mm
Auto Darkening Lens Classification
1/1/1 TrueView
Variable Dark Shades
Shade 5, 8, 9-13
Light State
TrueView Shade 3
UV Protection
Shade 13 (permanent)
Switching time, light-dark
0.1 ms (+23 C)
Delay (switching time, dark-light)
50-1300 ms
Blue-Tooth Enabled
Yes
Optional Task Light
Yes
Comfort Exhaust Vents
No (positive pressure seal for powered air)
Head Harness
New G5-01 Head Harness
Safety Helmet
No
Required minimum protection factor
50
Air flow Level
170 & 200 l/min
Adjustable Air Control
Yes
Adflo Battery Run Time
12 hours
Adflo Battery Charge Time
1 hour rapid charge (80% capacity), 5.5 hours complete
Welding Helmet Model
Speedglas G5-01
